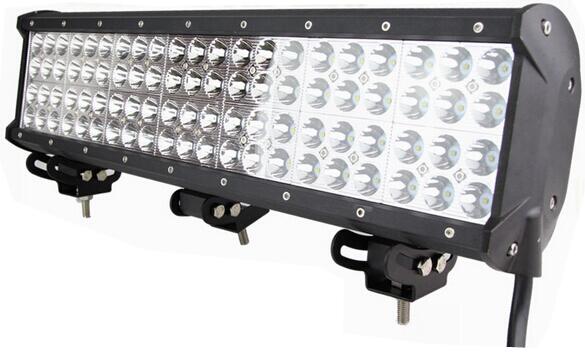

20inch 252W Led Headlight Bar Quad Row CREE Crane Fire Engine Bar
Same Series Details:
| Item No. | Size | Watt | Light Beam | LED Type | Work Voltage | Color | Lumens |
| PR-F1036 | 4" | 36W | Spot | 12PCS 3W CREE | DC 9V-32V | 6000K | 3240lm |
| PR-F1072 | 6.6" | 72W | Spot/Flood | 24PCS 3W CREE | DC 9V-32V | 6000K | 6480lm |
| PR-F10108 | 9.3" | 108W | Spot/Flood/Combo | 36PCS 3W CREE | DC 9V-32V | 6000K | 9720lm |
| PR-F10144 | 12" | 144W | Spot/Flood/Combo | 48PCS 3W CREE | DC 9V-32V | 6000K | 12960lm |
| PR-F10180 | 15" | 180W | Spot/Flood/Combo | 60PCS 3W CREE | DC 9V-32V | 6000K | 16200lm |
| PR-F10216 | 17" | 216W | Spot/Flood/Combo | 72PCS 3W CREE | DC 9V-32V | 6000K | 19440lm |
| PR-F10252 | 20" | 252W | Spot/Flood/Combo | 84PCS 3W CREE | DC 9V-32V | 6000K | 22680lm |
| PR-F10288 | 23" | 288W | Spot/Flood/Combo | 96PCS 3W CREE | DC 9V-32V | 6000K | 25920lm |
| PR-F10324 | 25.5" | 324W | Spot/Flood/Combo | 108PCS 3W CREE | DC 9V-32V | 6000K | 29160lm |
| PR-F10360 | 28" | 360W | Spot/Flood/Combo | 120PCS 3W CREE | DC 9V-32V | 6000K | 32400lm |
Amazing Features:
. Light position is adjustable
. Mounts easily atop headache racks, bull bars, grille guards, or any roof assemblies
. Housing includes 84 total LED Cree lights
. Total LED power: 252 watts

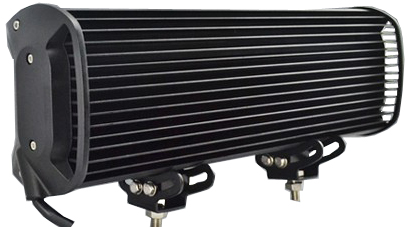

. Features built-in integral heat sink for improved cooling
. Polycarbonate lens cover is durable and resistant to the elements
. Die-cast aluminum housing is light weight, corrosion-free, and measures 20" x 6.5"
. 50,000 hours of LED bulb use provides 25 times the lifespan of traditional incandescent bulbs with 1/10th the energy consumption

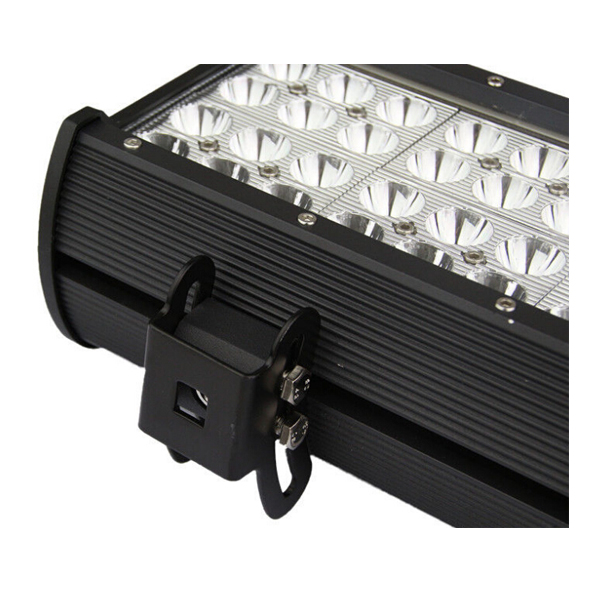

. Stainless steel mounting bracket and hardware provides high strength and freedom from corrosion
. Waterproof rating of IP 67 signifies the unit is completely dust tight and water-resistant up to 1 meter of depth
. Operating voltage: 9-32 volts DC
. LED control chip manufactured by Cree Corporation
. Color temperature rating is 6000 Kelvin (on the cool, blue end of the visibility scale)
. Lifetime Warranty on all led work lights and off road light bars
4 Rows Led Light Bar Description:
| Product Name | 20inch 252W 4 Rows Offroad Led Light Bar |
| Item No. | PR-F10252 |
| Led Power: | 252W |
| Led Type: | 84pcs High Intensity 3 watt Cree Leds |
| Lens material | Hard Polycarbonate (PC) |
| Mounting Bracket | adjustable single-bolt mounting bracket |
| Operating voltage | DC 10V-30V Fits 12V 24V Vehicles |
| Waterproof rate | IP 67 |
| Beam Type | Flood beam Spot beam Combo Beam |
| Lumen | 22680lm |
| Color Temperature | Cool White 6000K |
| Size | 20inch |
| Lifespan | Over 50000Hrs |
| Working Temperature | -40℃-80℃ |
| Technical Support | Lifetime |
| After- Service | Lifetime |
| Warranty | Lifetime |
Quad Row Led Light Bar Applications:
. Off-Road vehichles:4x4, ATU, SUV, UTV, Truck, Fork lift, Train, Boat, Bus and Tanks.
. Engineering vehicles: Excavator, dozer, road roller, bulldozer, crane and mining truck etc.
. Specialized vehicles: Fire engine, police car, rescue vehicle, communication vehicle, military command vehicles etc.

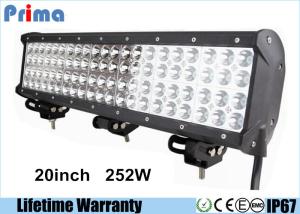

20inch 252W Led Light Bar Display:
